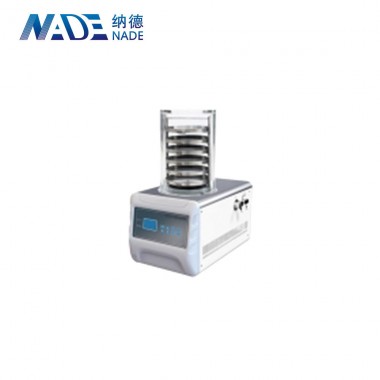

NADE ND-FD-1 Medicine Laboratory Normal Lyophilizer
Production description
The medicine laboratory lyophilizer series include ordinary type, cover type, branch manifold type, and T fixture, which are suitable for the freeze drying thermosensitive substances, such as serum, plasma, antibody, vaccines, drugs and microorganism, the plant extracting for bioresearch, and drying nano-particles, colloid, power, foods, plants and cultural relics in non-biological field.
The full name of the lyophilizers are freeze dryer, also called refrigerated dryer. They can be sorted into two fields: laboratory and industry according to application.
The ND-FD laboratory lyophilizers series are in the field of the biological laboratory products. The freeze-drying technology is mainly be used in the drug production of serum, plasma, vaccine, enzyme, antibiotic, hormone, etc. The freeze-drying technology can be used in the medicine inspection of biochemistry, immunology and bacteriology. It can also be used in blood, bacteria, artery, skeleton, skin, cornea, nerve tissues, the long-stem storage of organs, etc.
Feature
The equipment is adopted with imported all-seal refrigerant compressor with low temperature and high capturing water capability. The machine can be cooled down by air, instead of water.
Vacuum connection is adopted with international standard parts, which is easy to dismantle or install and has reliable sealing performance.
Cold trap temperature and sample vacuum are both used LED digital to display, which is brief and clear.
The touching soft key which is specifically designed can set various functions fast and accurately. The operation is easy and convenient.
The transparent bell-type drying room is natural heating, safe and visual.
The stainless steel sample holder is designed specially. Normal sample tray is space adjustable and the layers can be set freely.
The stainless steel cold trap and mesa is clean, hygeian, beautiful and corrosion resistant.
Application
Specifications
Model | Condensation Temperature ℃ | Vacuum Degree （No Load） | Lyophilizing Acreage㎡ | Dry quantity | Power W | |
ND-FD-1 | Normal | ＜-50 | ＜10Pa | 0.12 | 3Kg/24h | 1100 |
Gland Type | ＜-50 | ＜10Pa | 0.07 | 3Kg/24h | 1100 | |
Multi-Pipeline Ordinary | ＜-50 | ＜10Pa | 0.12 | 3Kg/24h | 1100 | |
Multi-Pipeline Top-Ptess | ＜-50 | ＜10Pa | 0.07 | 3Kg/24h | 1100FAQ | |
FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
